Model No.: RB 720A

Features:
1,Angle adjustment via hand wheel,saw blades rise/fall via button;
2,Led shows saw blade tilt degree;
3,Double roller carriage system to guarantee absolute precision and smooth running;
4,Torsion-resistance and low maintenance;
5,High quality and frame structure machine body;
6,Equipped scoring unit powered by a separate motor;
7,Perfect for cutting heavy large boards and plates;
8,Three different cutting speeds as standard;
9,Very accurate and solid rip fence with fine adjustment function;
10,Table extensions enable convenient working conditions;
11,Heavy machine with massive, rugged by precise construction for max. Cutting accuracy.

Specification:

Dimension of sliding table	*3200mm388mm**
Width of cut	1250mm
Maximum height of cut 90°/45°	95/70mm
Table height	850mm
Tilting style/blade up&down	Manual/Electric
Maximum main saw blade size	*350mm30mm**
Scoring saw diameter	*120mm20mm**
Dust Collector inlet	100mm
Main power/Scoring power	5.5Kw/1.1Kw
Voltage	415V/400V/380V/220V
Speed of main saw spindle	6000rpm
Speed of scoring saw blade	8000rpm
Overall dimensions	*32003150900mm*
N.W/G.W	800KGS/900KGS

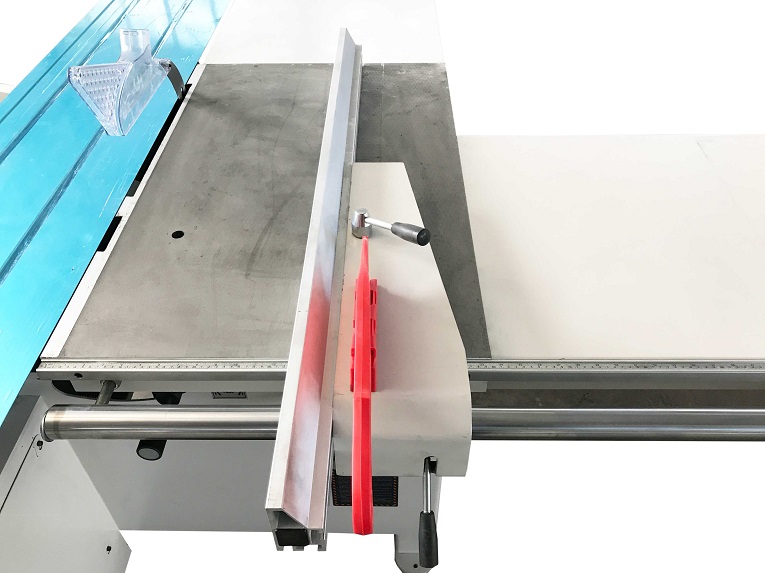

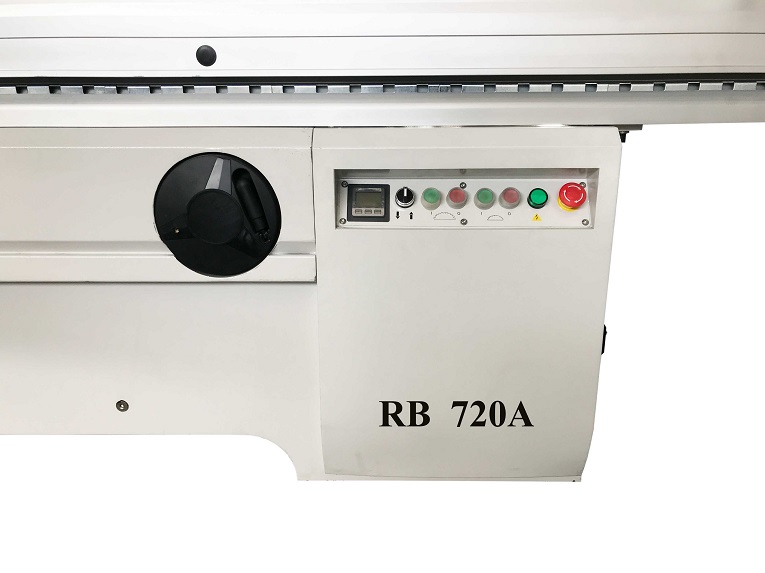

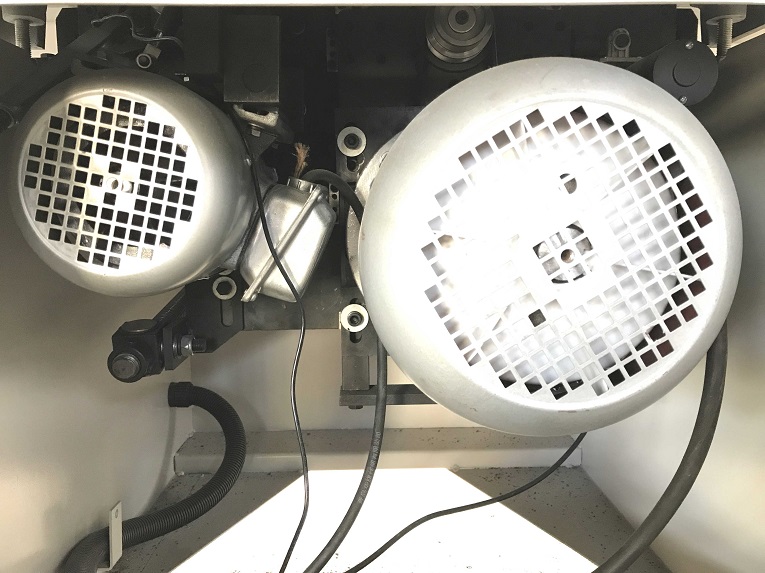

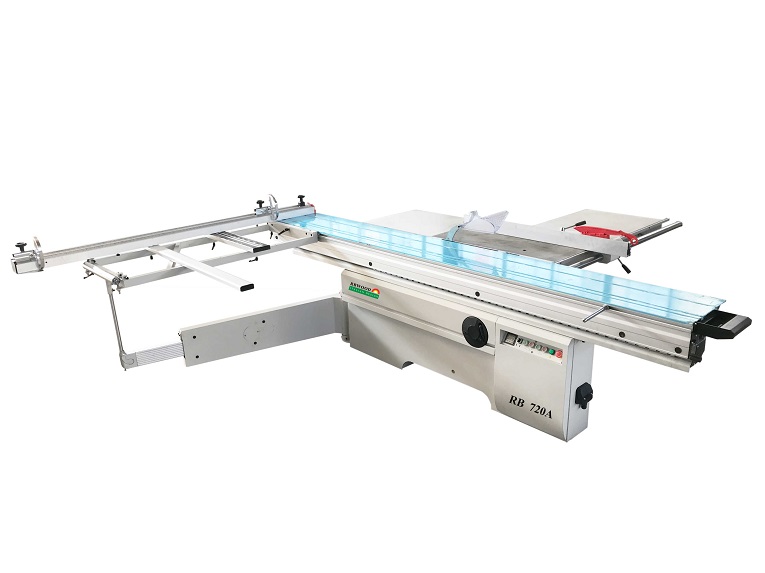

Photos:
