Model No: RB 725
Features:
1, Smoothly running saw blade height and angle adjustment via hand wheel;
2, Led shows saw blade tilt degree;
3, High quality and frame structure machine body;
4, Double roller carriage system to guarantee absolute precision and smooth running;
5, Torsion-resistance and low maintenance;
6, Perfect for cutting heavy large boards and plates;
7, Three different cutting speeds as standard;
8, Very accurate and solid rip fence with fine adjustment function;
9, Table extensions enable convenient working conditions;
10, Heavy machine with massive, rugged by precise construction for max. Cutting accuracy.
Specification:
| Dimension of sliding table | 3200mm*430mm |
| Width of cut | 1250mm |
| Maximum height of cut 90°/45° | 120/95mm |
| Table height | 850mm |
| Tilting style/blade up&down | Manual/Manual |
| Maximum main saw blade size | 400mm*30mm |
| Scoring saw diameter | 120mm*20mm |
| Dust Collector inlet | 100mm |
| Main power/Scoring power | 5.5Kw/1.1Kw |
| Voltage | 415V/400V/380V/220V |
| Speed of main saw spindle | 3000/4000/5000rpm |
| Speed of scoring saw blade | 8800rpm |
| Overall dimensions | 3200*3150*900mm |
| N.W/G.W | 850KGS/950KGS |

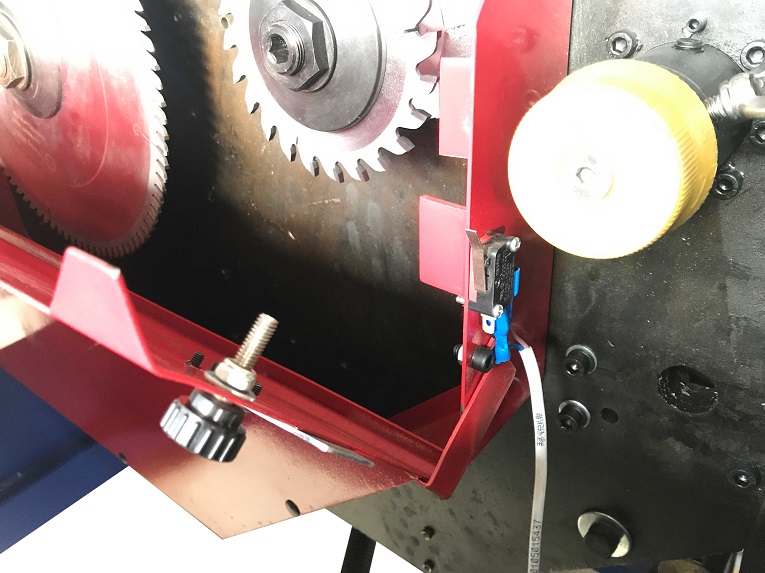

Photos:
