RB 720C 3800mm-Sliding table saw - sliding table saw, panel saw, circular saw, format saw - RBWOOD-specialist in woodworking machines since 1998.

Products Iist

Sliding table saw

home > Products > Sliding table saw > details

Model No: RB 720C 3800mm

Features:
1, Angle adjustment via hand wheel, saw blades rise/fall controlled via button;
2, Led shows saw blades tilt degree;
3, Double roller carriage system to guarantee absolute precision and smooth running;
4, Torsion-resistance and low maintenance;
5, High quality and frame structure machine body;
6, Equipped scoring unit powered by a separate motor;
7, Perfect for cutting heavy large boards and plates;
8, Three different cutting speeds as standard;
9, Very accurate and solid rip fence with fine adjustment function;
10, Table extensions enable convenient working conditions;
11, Heavy machine with massive, rugged by precise construction for max. Cutting accuracy.

Specification:

Dimension of sliding table	*3800mm430mm**
Width of cut	1150mm
Maximum height of cut 90°/45°	120/95mm
Table height	850mm
Tilting style/blade up&down	Manual/Electric
Maximum main saw blade size	*400mm30mm**
Scoring saw diameter	*120mm20mm**
Dust Collector inlet	100mm
Main power/Scoring power	5.5Kw/1.1Kw
Voltage	415V/400V/380V/220V
Speed of main saw spindle	3000/4000/5000rpm
Speed of scoring saw blade	8800rpm
Overall dimensions	*32003150900mm 3.96cbm*
N.W/G.W	900KGS/1000KGS

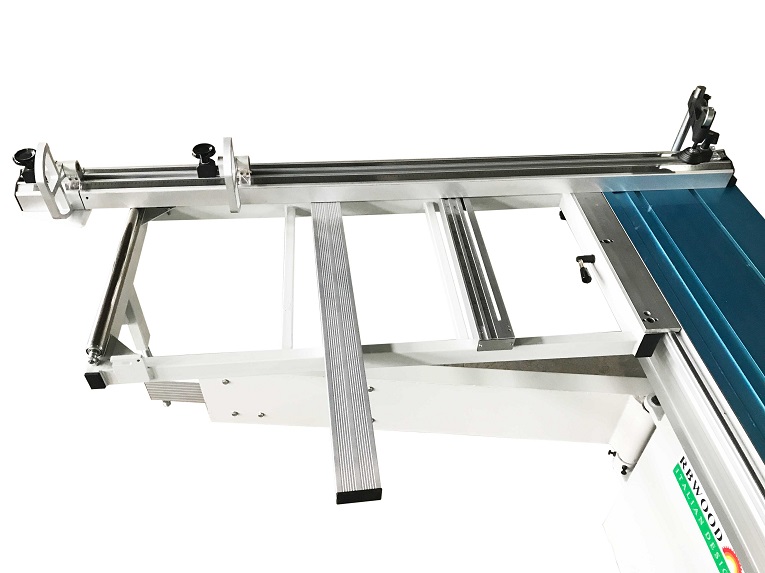

Photos:

Model video:
