rbwood


Model No: RB 720C

Features:

1, Angle adjustment via hand wheel,saw blades rise/fall via button;
2, Led shows saw blade tilt degree;
3, Double roller carriage system to guarantee absolute precision and smooth running;
4, Torsion-resistance and low maintenance;
5, High quality and frame structure machine body;
6, Equipped scoring unit powered by a separate motor;
7, Perfect for cutting heavy large boards and plates;
8, Three different cutting speeds as standard;
9, Very accurate and solid rip fence with fine adjustment function;
10, Table extensions enable convenient working conditions;
11,  Heavy machine with massive, rugged by precise construction for max. Cutting accuracy.



Specification:

Dimension of sliding table 3200mm*430mm
Width of cut 1250mm
Maximum height of cut 90°/45° 120/95mm
Table height 850mm
Tilting style/blade up&down Manual/Electric
Maximum main saw blade size 400mm*30mm
Scoring saw diameter 120mm*20mm
Dust Collector inlet 100mm
Main power/Scoring power 5.5Kw/1.1Kw
Voltage 415V/400V/380V/220V
Speed of main saw spindle 3000/4000/5000rpm
Speed of scoring saw blade 8800rpm
Overall dimensions 3200*3150*900mm
N.W/G.W 850KGS/950KGS


Side view(strong frame structure machine body):


Back view:




Handle wheel for 45 degree tilting, frotal face and controller button:


Led readout blades titling degree, button for blades up&down and other controller buttons:


305mm(400mm Max.) big blade and 120mm scoring blade:




Scoring blade adjustment device:


430mm width double round rod guide rail with side bar:




Multiple stopping positions for sliding table:




Saw internal unit:


Electrical parts panel:

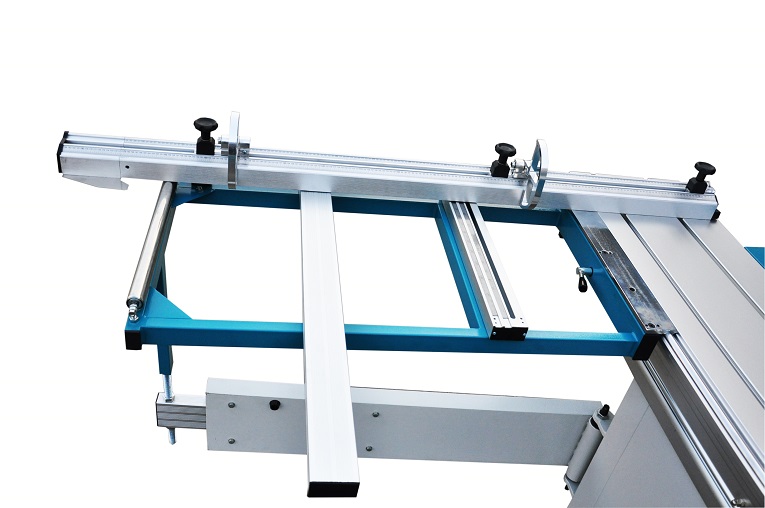

Strong gross fence:




Strong rotating arm:


Stoppers:






45 degree belvel on gross fence:


Strong stainless steel plate on side bar:


Lock for gross fence:

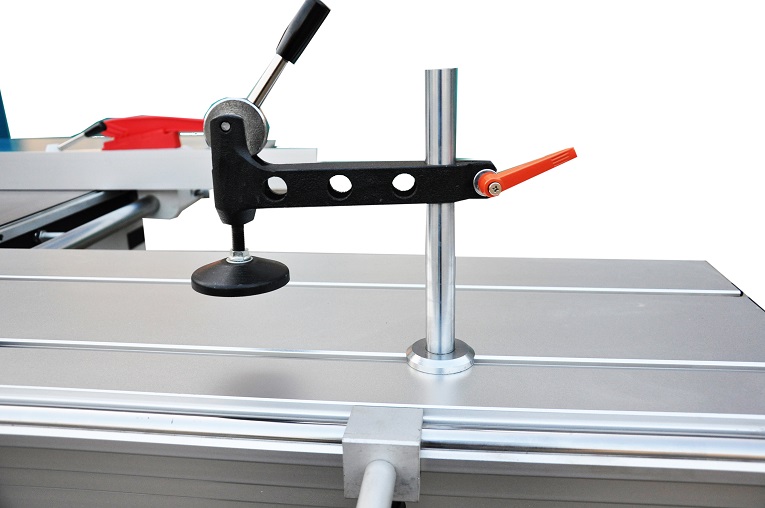

Eccentric swage:


45 degree miter:


Push-pull rod:



Advanced protection hood:


Rip fence with fine tuning:


Lubricator for linear guide rail of saw unit:


100mm diameter of outlet for sawdust:


Strong extented tables:
