Features:

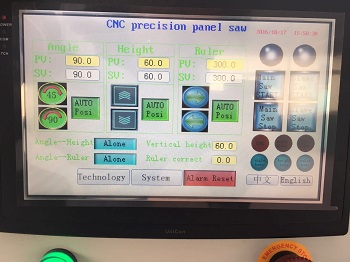

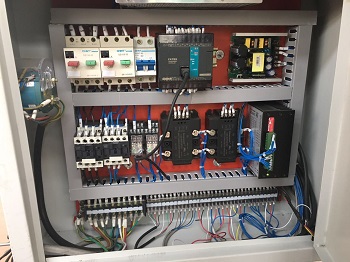

Angle adjustment and saw blades rise/fall controlled by PLC
Electric control the movement of rip fence
Double roller carriage system to guarantee absolute precision and smooth running
High quality and frame structure machine body
Equipped scoring unit powered by a separate motor
Perfect for cutting heavy large boards and plates
Three different cutting speeds as standard

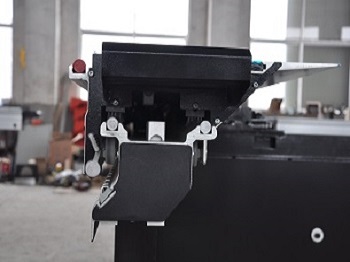

Very accurate and solid rip fence with fine adjustment function
Table extensions enable convenient working conditions
Heavy machine with massive, rugged by precise construction for max. Cutting accuracy
Specification:
| Dimension of sliding table |
3200mm*430mm |
| Width of cut |
1250mm |
| Maximum height of cut 90°/45° |
120/95mm |
| Table height |
850mm |
| Tilting style/blade up&down |
Electric/Electric |
| Maximum main saw blade size |
400mm*30mm |
| Scoring saw diameter |
120mm*20mm |
| Dust Collector inlet |
100mm |
| Main power/Scoring power |
5.5Kw/1.1Kw |
| Voltage |
380V |
| Speed of main saw spindle |
3000/4000/5000rpm |
| Speed of scoring saw blade |
8800rpm |
| Overall dimensions |
3200*3150*900mm |
| N.W/G.W |
850KGS/950KGS
|
