Features:

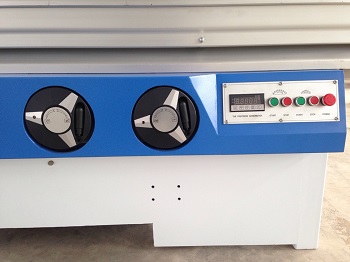

Smoothly running saw blade height and angle adjustment via hand wheel
Led shows saw blade tilt degree
High quality and frame structure machine body

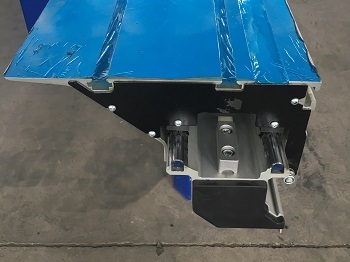

Double roller carriage system to guarantee absolute precision and smooth running
Torsion-resistance and low maintenance
Perfect for cutting heavy large boards and plates
Three different cutting speeds as standard

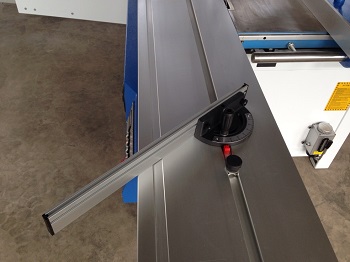

Very accurate and solid rip fence with fine adjustment function
Table extensions enable convenient working conditions
Heavy machine with massive, rugged by precise construction for max. Cutting accuracy
Specification:
| Dimension of sliding table |
3200mm*375mm |
| Width of cut |
1250mm |
| Maximum height of cut 90°/45° |
120/95mm |
| Table height |
850mm |
| Tilting style/blade up&down |
Manual/Manual |
| Maximum main saw blade size |
400mm*30mm |
| Scoring saw diameter |
120mm*20mm |
| Dust Collector inlet |
100mm |
| Main power/Scoring power |
5.5Kw/1.1Kw |
| Voltage |
380V |
| Speed of main saw spindle |
3000/4000/5000rpm |
| Speed of scoring saw blade |
8800rpm |
| Overall dimensions |
3200*3150*900mm |
| N.W/G.W |
800KGS/900KGS
|
