| Edge thickness | 0.4~3mm |
| Feed speed | 12.6m/min |
| Panel thickness | 10~40mm |
| Panel length | ≥140mm |
| Panel width | ≥50mm |
| Glue motor power | 0.37kw |
| Glue tank heating power | 1.5kw |

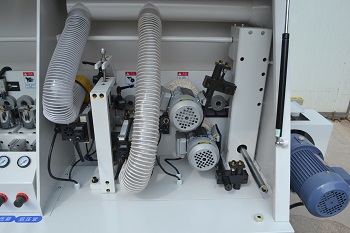

| Fine trimming motor power | 0.75 kw*2 @ 18000rpm |
| Buffing motor power | 0.18 kw*2 @ 1400rpm |
| Total motor power | 5.0 kw |

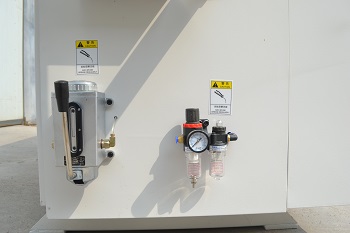

| Working pressure | 0.7Mpa |
| Extended support | 550mm |
| Outline size | 2370*700*1500mm |
| Package size | 2450*750*1550mm |
| Net weight/Gross weight | 850kgs/985kgs |
